"Push-pull" "Class A / B" dulkių siurblio stereofoninis stiprintuvas

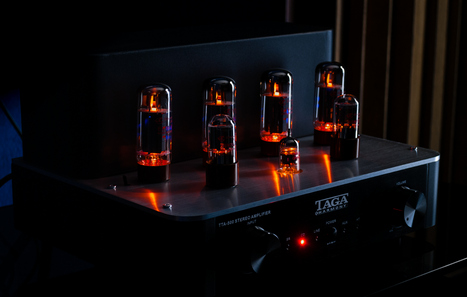

TTA-500 is 2 x 35W Class AB high fidelity vacuum tube integrated amplifier utilizing four EL34 tubes in the output stage and a 12AX7 tube preamp section, composed of two 6SN7 tubes as drivers, and a Triode / Pentode mode selector switch.



TTA-500 uses audiophile-grade coupling capacitors: Wima  for input and connecting driver tubes with the output amp, and Rubycon capacitors in the power filtering.

The amplifier sounds in a very warm, lifelike way and high dynamics and the sound is very linear with almost no negative feedback.



High-quality  EI broadband sound output transformer provides voltage stability and constant and immediately-available energy at any volume level. The both channels use independent rectifier and filter circuits in the supply power. The sound is natural and fresh with deep multidimensional soundstage.


The audiophile grade  ALPS volume potentiometer ensures minimal noises and channels crosstalk and has excellent operational feel and limits errors between the two channels.

The high-end class, gold-plated speaker terminals offer almost lossless audio signal transmission to speakers.


Analog inputs with high-end solid machined brass RCA sockets can accommodate up to 3 stereo devices.

The preamplifier input (HT input) is dedicated for using the TTA-500 as a tube power amplifier and allows to connect it to your Home Theatre system (AV receiver or amp) to drive front left and right channels - now you can use the same pair of speakers in your high-end stereo  as well as in the multichannel system without switching speaker cables nor changing the amplifier.


The removable IEC power cable gives you an option to upgrade your system with a premium audiophile power cable in any time.

The TTA-500 amplifier does not only sound great but it also looks magnificently. The front and side walls of the housing are made of thick 6 mm aluminum. The vacuum tube decorative panel is finished in a modern brushed aluminum color.



Enjoy the analog sound at its best – Enjoy the TTA-500!



Specifikacijos:

Galingumas:

2 x 35 W Pentode režimas
2 x 17W Triodo režimas
Push-pull Class AB

Išėjimo varža: 4 Ω , 8 Ω

Vakuuminė lempa:

4 x EL34, 2 x 6SN7, 1 x 12AX7

Rankinis poslinkio reguliavimas

THD:≤0,2% (1KHz / 2V)
 Signalo / triukšmo santykis:

89db

Dažnio atsakas:10Hz - 40kHz (+/- 1dB)
Įvestis:
Analoginis :
RCA Stereo: CD, Line, Aux, HT (PRE IN)

Linijiniai įėjimai:RCA Stereo: CD, Line, Aux:
Jautrumas: 400mV
Varža: RCA 50K omi

HT Stereo įvestis (
PREIN ): Jautrumas: 1000mV
Varža: RCA 50K oma
Įtraukti priedai:

Visas Aliumininis nuotolinis valdiklis
Vamzdžių gaubtas (įmontuotas gamykloje)
IEC Maitinimo laidas
Baltoji medvilninės pirštinės

Kintamosios srovės maitinimas, galingumas:230-240V 50Hz, 190W
Matmenys (H x W x D):22 x 38 x 34,5 cm
Svoris (neto):19,5 kg / vnt
Apdaila:Juodas
